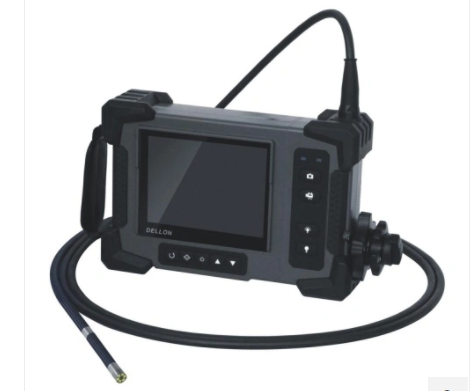

HD Industrial Videoscope.

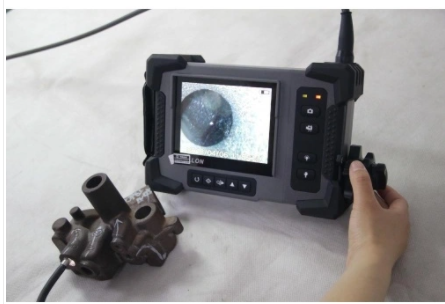

Pipe Videoscope becomes a common inspection tool these years,which is welcomed in the areas,for example aircraft,automotive,petrochemical,machinery,building and many other types of field applications.People always use HD industrial Videoscope check jam,welding,corrosion of the tube which is too small that people can not reach directly.Of course,HD industrial videoscope is most popular among Pipe videoscope area,it has high resolution camera,high sensitiveness CCD/CMOS image sensor that can catch the better pictures,which can help people to find the defected parts.
HD industrial videoscope Features:

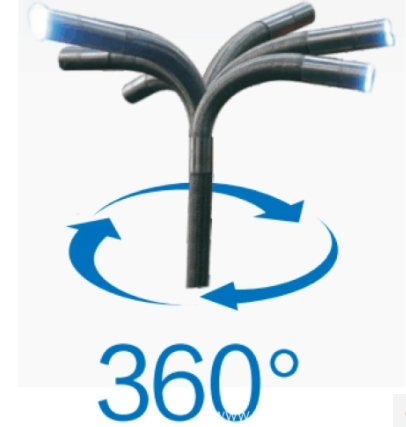

High resolution camera,360 ° Articulation.
Highly Durable and Flexible Tungsten Insertion cable.
Removable handles:to choose the corresponding handle according to the diameter of the pipe you detected.
High brightness LCD.
High sensitiveness CCD/CMOS image sensor.
Replaceable polymer lithium battery,working time is more than 4 hours.
Tungsten braid cable,corrosion resistance.
HD industrial videoscope Specification
Operating Unit:
Display:5.7 inches LCD
Interface:Video output(NTSC/PAL),SD,USB and charging port
Power Supply:12V Lithium battery or AC Adapter
Working Time:≥4 hours
Probe:
Probe Diameter:6.2mm
Camera Pixel:700,000
Articulation:360° all-way
Tube Length:1.5m-3m
Material of Tube:Tungsten cable
Depth of Field:15mm-infinity
Viewing Angle:90°
Bending Angle:≥120°
Illumination:
Type:Highlight LED
Brightness adjustment:0-5 levels
Others:
Zoom:5X
Memory:32GSD card
Waterproof Level:IP65/IP67(Optional)
System weight:2.1Kg
Dimensions:570*180*470(mm)
