Pipe Borescope.

We developed and produced all kinds of portable Pipe Borescopes,which are widely used in Power,Petrochemical,Aviation,Police Counter-terrorism,Nuclear industry,Customs,Military,Shipbuilding,Automobile and so on.We do not only provide the best performance Pipe Borescope but also offer the best after-sales service,immediate repairing ( 1 week to 3 weeks ),12 months for warranty freely.And our goals are customers are the first,to solve problems for our customers is our duty.

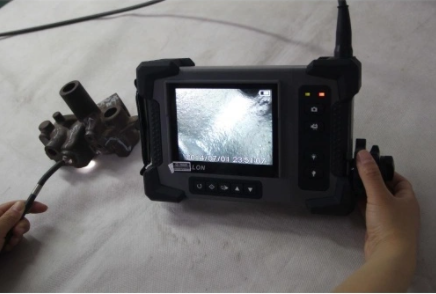

Model:D8600/D8800/D810 All Way Articulating 8.4 mm Pipe borescope

Pipe borescope Features:

Removable handles:to choose the corresponding handle according to the diameter of the pipe you detected.
High brightness LCD.
Highly Durable and Flexible Insertion Tube.
High-Intensity LED Illumination.
True Portability in a Compact Package.

High sensitiveness CCD/CMOS image sensor.

Replaceable polymer lithium battery,working time is more than 4 hours.

Tungsten braid cable,corrosion resistance,the longest inserted cable can be up to 10 meters.

Pipe borescope Specification

Pipe borescope Operating Unit:
Display:5.7 inches LCD

Interface:Video output(NTSC/PAL),SD,USB and charging port

Power Supply:12 V Lithium battery or AC Adapter

Working Time:≥4 hours

Probe:

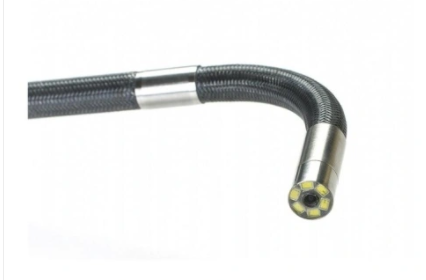

Probe Diameter:8.4 mm

Camera Pixel:700,000

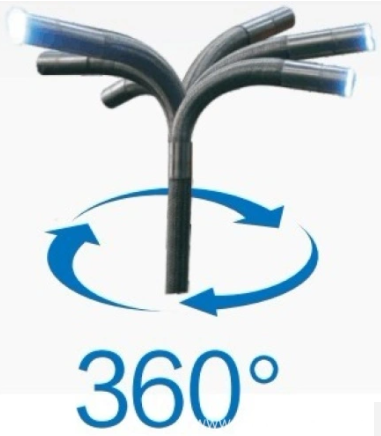

Articulation:360° all-way
Tube Length:1.5 m-3 m

Material of Tube:Tungsten cable
Depth of Field:15 mm-infinity/5 mm-50 mm
Viewing Angle:90°
Bending Angle:≥120°

Illumination:
Type:Highlight LED

Brightness adjustment:0-5 levels

Others of Pipe borescope:

Zoom:5 X
Memory:32G SD card
Waterproof Level:IP65/IP67(Optional)
System weight:2.1 Kg

Dimensions:570*180*470(mm)
