Product Details

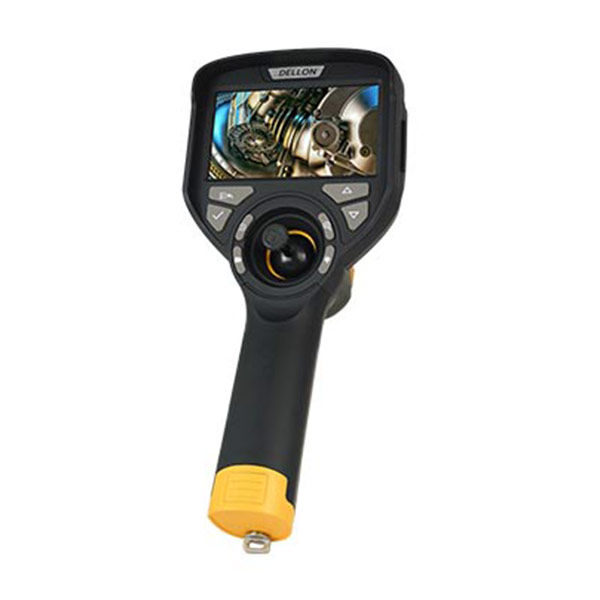

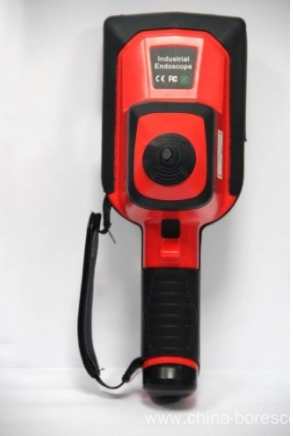

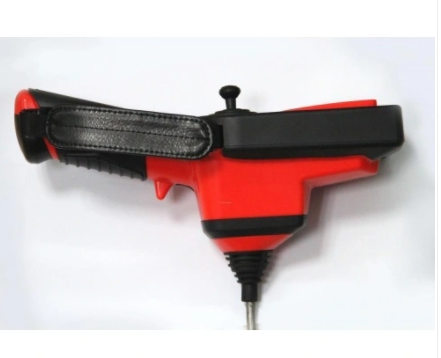

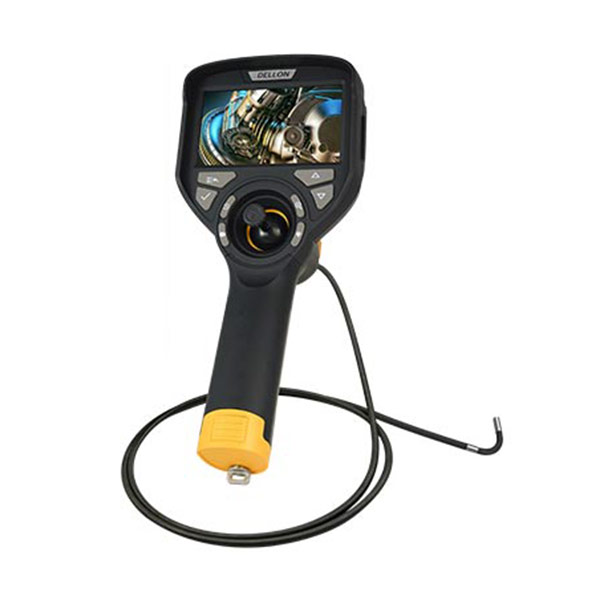

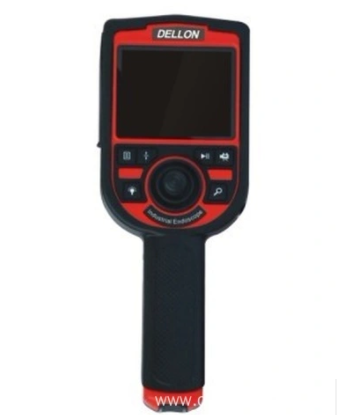

Industrial videoscope.

Industrial videoscope Model: GM3915/GM3930/GM6215/GM6230.

Industrial videoscope is a new type of non-destructive flaw detection instrument that integrates optics, electronic technology, precision machinery and microscopic camera technology.

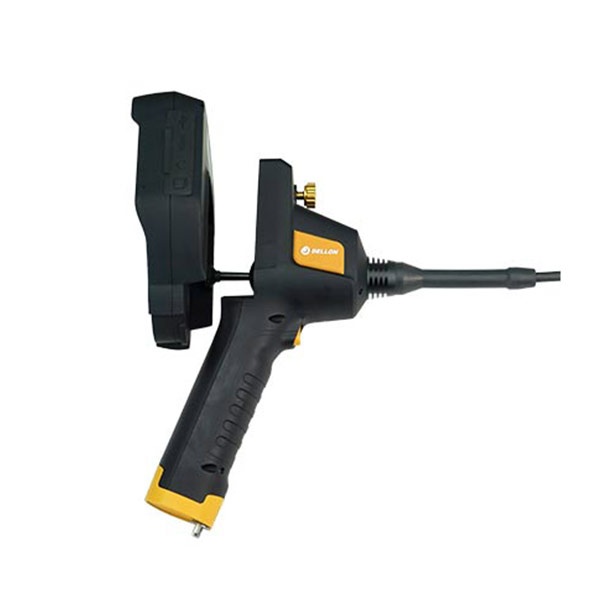

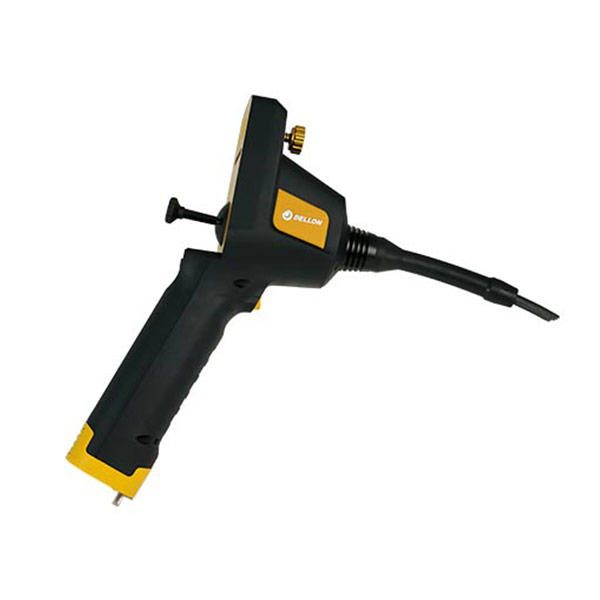

Industrial videoscope.The controller and probe are designed to be separated, and probes of 3.9mm/6.2mm with different diameters and lengths can be quickly replaced to suit more working conditions.

Industrial videoscope Specifications:

Industrial videoscope Model:GM3915/GM3930/GM6215/GM6230 All Way Articulating 3.9mm/6.2mm Industrial videoscope。

Industrial videoscope features:

Industrial videoscope Joystick-Controlled,360 °.

Hight brightness LED:adjustment 0-5 levels.

Highly Durable and Flexible Insertion Tube.

True Portability in a Compact Package.

High sensitiveness CCD/ CMOS image sensor.

Industrial videoscope Stainless steel inserted cable,anticorrosive and wearable.

Industrial videoscope Display:4.3 inches LCD.

Industrial videoscope output(NTSC / PAL),SD,USB and charging port.

Industrial videoscope Power Supply:AA Batteries or AC Adapter.

Industrial videoscope working Time:≥2 hours.

Industrial videoscope probe:Probe Diameter:6.4 mm.

Industrial videoscope Camera Pixel:720P.

Industrial videoscope Articulation:360°all-way.

Industrial videoscope Tube Length:1.5m-3m.

Industrial videoscope Material of Tube:Tungsten wire.

Industrial videoscope Depth of Field:15mm-infinity.

Viewing Angle:90°.

Bending Angle:≥120°.

Illumination Type:6 pcs white light LED.

Brightness adjustment:0~5.levels.

Industrial videoscope zoom:5X.

Industrial videoscope memory:64GSD card.

Industrial videoscope waterproof Level:IP67

Industrial videoscope weight:590g.

Industrial videoscope dimensions:470*360*150(mm).
